Hey everyone, Here is something cool that I have been working on that I think you may enjoy.

Variable pitch prop

Variable pitch prop

So, I had been pondering how to make an inexpensive variable prop. I was thinking about using a heli head from a hk450 or perhaps a tail rotor. I eventually saw a post on DIYdrones.com where a guy was using a tail rotor from a HK500 (can’t find post). I got inspired and found a HK600 tail rotor has the same shaft diameter as the turnigy G10 I use on the techpod. this is what I have come up with.

20130617_183533

variable pitch test rig

I measured 15 degree max forward pitch and 12 degree reverse pitch. at 15 degrees forward pitch it drew 40 amps from a 3 cell lipo and puts out just under 5 lbs thrust.

I got the blades here and the tail rotor assembly here. I removed one side of the tail rotor plates and replaced both the shaft in the tail rotor and the shaft in the motor with one long 5 mm shaft. I had to notch it a few times for the set screws.I then made a plate to help support the rotor plate so I could then brace it with some 4-40 all thread rod and nyloc nutsI also made a custom motor mount for the techpod.

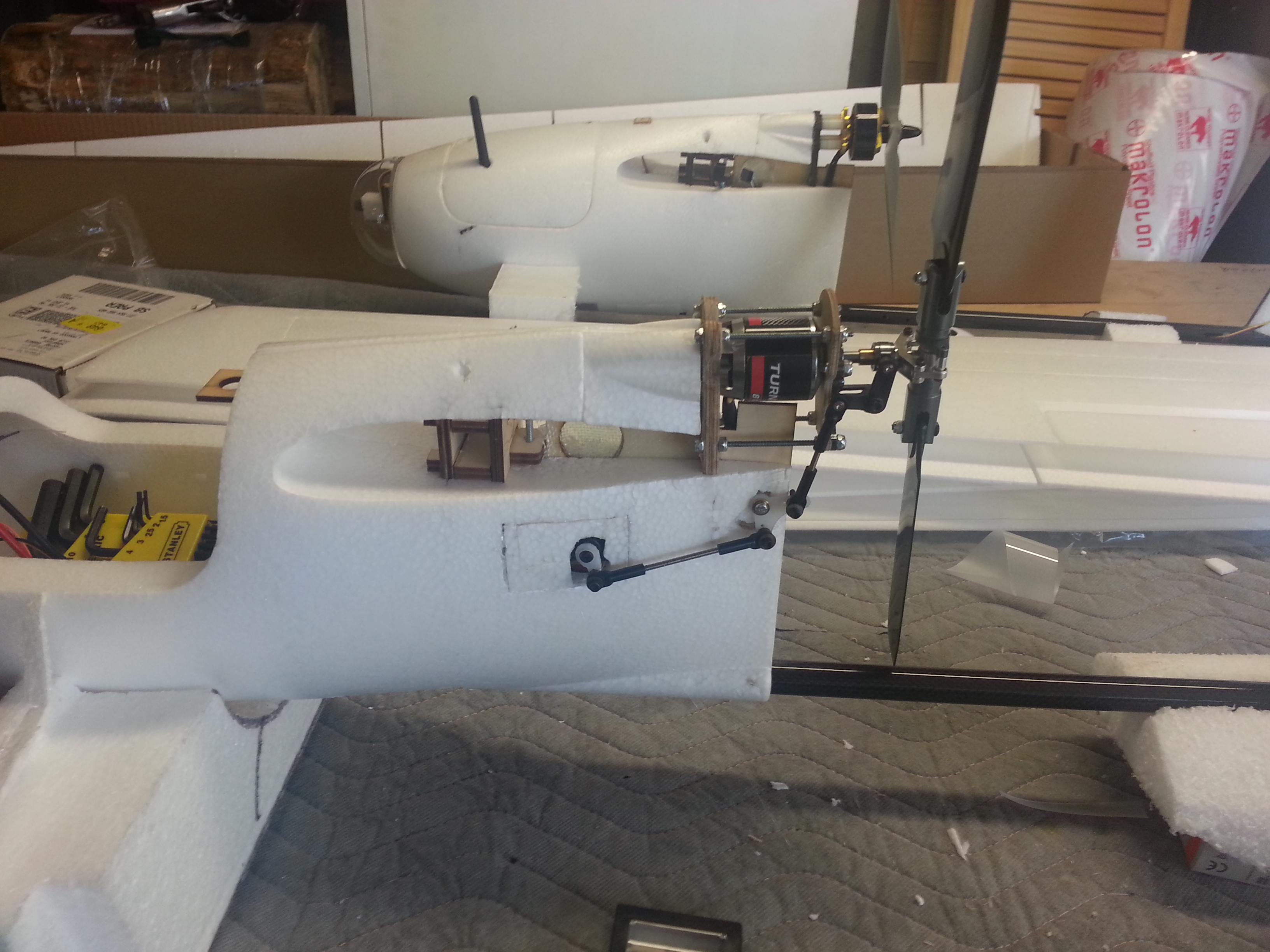

After the motor was secured, I cut out a mount for the pitch servo. Then I cut a hole in the foam so I could attach the servo mount to the techpods rear fuselage brace. I grabbed a bell crank from the local hobby shop and mounted it to the rear brace as well.

I have the techpod mostly assembled and should have the batteries for it later today. I hope to be able to start test flying over the weekend. If everything works out well, I plane on offering this as an mod kit for the techpod.
